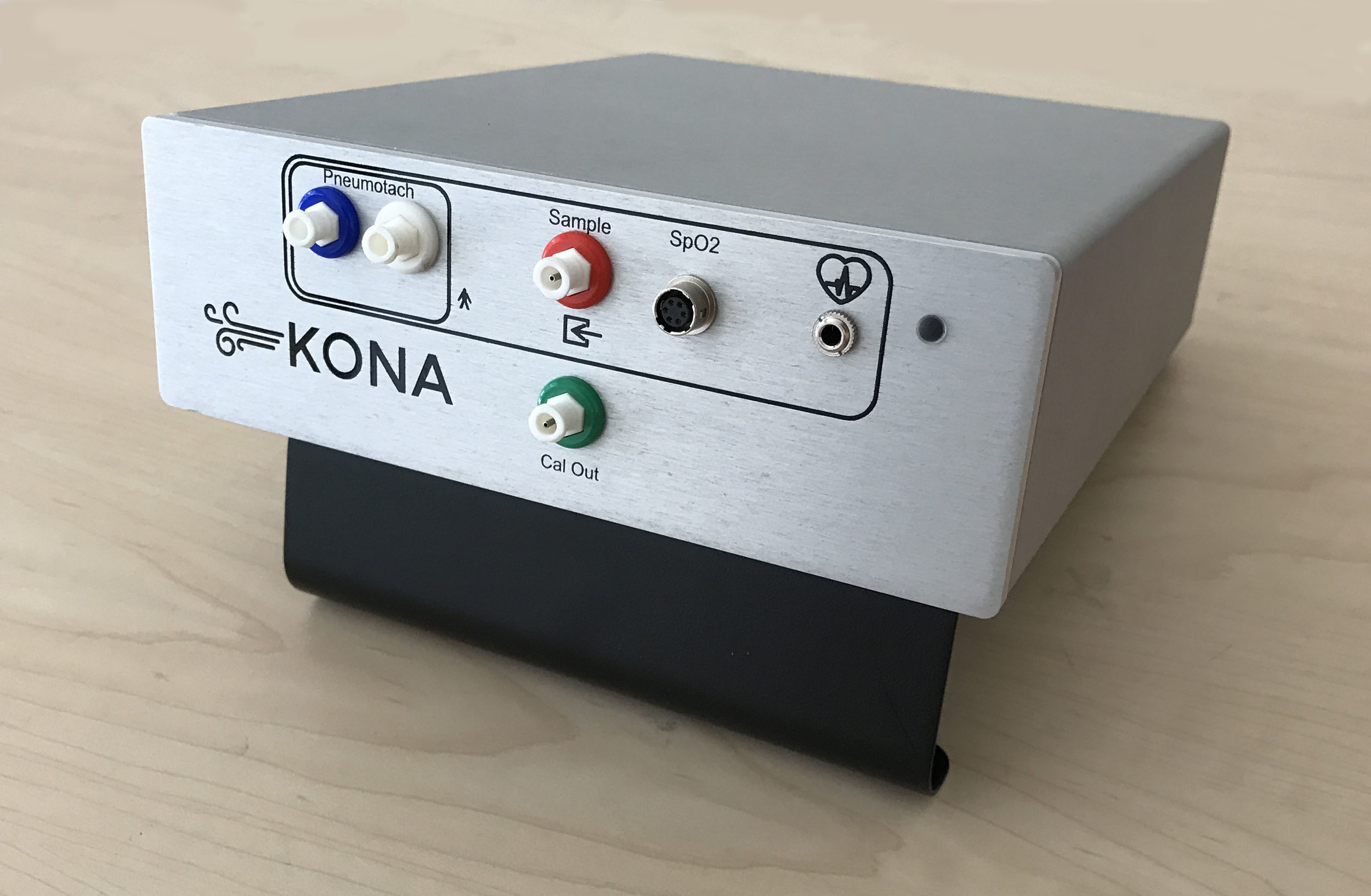

The KONA system isn't an entirely new idea. Back in the 1990s we manufactured a similar device called the Orca. We've kept the same fundamentals, but we've added new features, new software, and streamlined the overall design. Take a look:


Breath-by-breath, O2, CO2, and respiration flow rate are measured precisely and accurately with internal sensors. Interfaces are provided for heart rate monitoring and pulse oximetry. The oxygen sensor is long-lasting and does not require routine maintenance.

Click below for more information:


Laser absorption spectroscopy oxygen sensor (fast response time and long life).
Non-dispersive infared CO2 sensor.


    Internal sampling pump and built-in proportional valve for precise flow control during breath-by-breath pressure changes.


Single-patient pneumotach use. Type in a calibration code into the software; no need for a 3L syringe

KONA Software

Next-generation, easy-to-use software that pairs seamlessly with the O2CPX analyzer and makes it easy for anyone to perform accurate tests. Designed for PC computers.

(Click and scroll through the software screenshots for a full screen view.)

  • Visual Override

    Change the AT or VO2 max with visual, manual override.

  • Chart Reporting

    Wasserman 9 graph display, Binder 4 graph display, and the option to make custom charts and data presentation.

  • Shared Database

    Multi-station, shared, relational database allows for multiple test sites and the ability to review results anywhere with a Microsoft Windows device.


Click below for more information:

Ergotron Cart

Ergotron Neo-flex computer cart with height adjustable monitor and work surface to accommodate a variety of users and situations.

Click below for more information:

  • Monitor Displays

    Single monitor (up to 42 in) or dual monitor (22 in) mounting capabilities.

  • Features

    20 inch height adjustment, accessory basket, locking wheels, mounting for 500L calibration gas cylinder.

  • Work Surface

    Keyboard and mouse work surface, integrated Intel NUC computer mounting, integrated power and cable routing.
